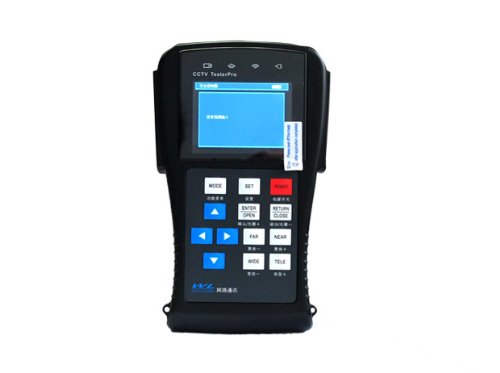

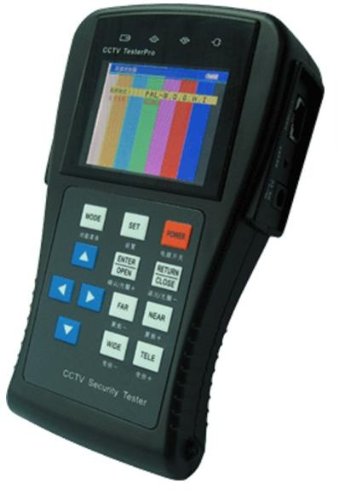

VTooLand (TM) STest-890 CCTV Security Tester 2.8"TFT-LCD Monitor / PTZ Controller / Video Signal Generator / UTP Cable Teste
Thumbnail 1Thumbnail 2

VTooLand (TM) STest-890 CCTV Security Tester 2.8"TFT-LCD Monitor / PTZ Controller / Video Signal Generator / UTP Cable Teste

Product ID: 10212634
Secure Transaction
Frequently Bought Together

Description

  • Sold by OBD-Hotsales,if any questions please email us.
  • STest-890 CCTV Security Tester 2.8"TFT-LCD Monitor / PTZ Controller / Video Signal Generator / UTP Cable Teste
  • The STest-890 is developed for the installation and maintenance of video monitoring system. It can be used for displaying video, controlling PTZ, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and convenient portability enable it simple for the contractor to install and maintain the video camera, promote working efficiency and cost-down the expenditure of the project.
  • Application: - CCTV system installation and maintenance - Dome camera and All in one camera testing - The CCTV transmitting channel testing - PTZ controller
  • Features: - 2.8"TFT-LCD , 960(H)×240(V)resolution - Colorbar Video signal generator, transmit/receive colorful images - Adjustable brightness, contrast, color of LCD - Powerful in testing LAN cable, measuring the connecting status ,displaying the sequence of connection and display the NO. of the LAN cable. - Automatically identify and adapt the video mode of NTSC and PAL - Support RS232 and RS485 interface, the rate of transportation adjustable - Support more than ten kinds of PTZ controller protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc. - Capture the PTZ protocol to assist the setting personnel to find out the control protocol and therefore easily target the problematic equipment. - PTZ(P/L & Zoom) Control: Control the status of P/L, zoom in/out the camera, adjust the aperture, foci and setting parameters, run and call the preset. - Lithium Ion Polymer Batteries(3.7V DC2800mAh), more reliable, and work 11 hours

Specification: MODEL STest-890 CCTV Security Tester Video Test Signal mode NTSC/PAL (Auto Adjust) Display 2.8 inch TFT-LCD ,960 x 240 resolution LCD adjust Adjustable brightness, contrast, color of LCD Video IN/OUT 1 channel BNC Input & 1 channel Output Video Output Mode 1.0 Vp-p PTZ controller Communication RS232, RS422 simplex and RS485 PTZ Protocol Pelco-D, Pelco-P; Samsung, Panasonic, LiLin or customized Baud Rate 150,300,600,1200,2400,4800,9600,19200bps Video Signal Generation Color bar generation Output 1 channel color bar video signal for testing monitor UTP CABLE TEST UTP cable test Test UTP cable connection state and display in the screen. Read the number of the test box. PTZ data Capture and display PTZ Data Test Capture and Analyze the PTZ data sent from controlling device POWER Power Adapter DC5V, 2A Battery 1 pcs Lithium Ion Polymer Batteries, 3.7V DC2800mAh Rechargeable 3.5 hours recharging time, work for 11 hours Low Consumption Sleeping mode, display battery power state Other Parameters Work Temperature -30℃---+70℃ Work Humidity 30%-90% Dimension/Weight 175mm x 94mm x 36mm
