🔌 Connect with confidence, shine without limits!

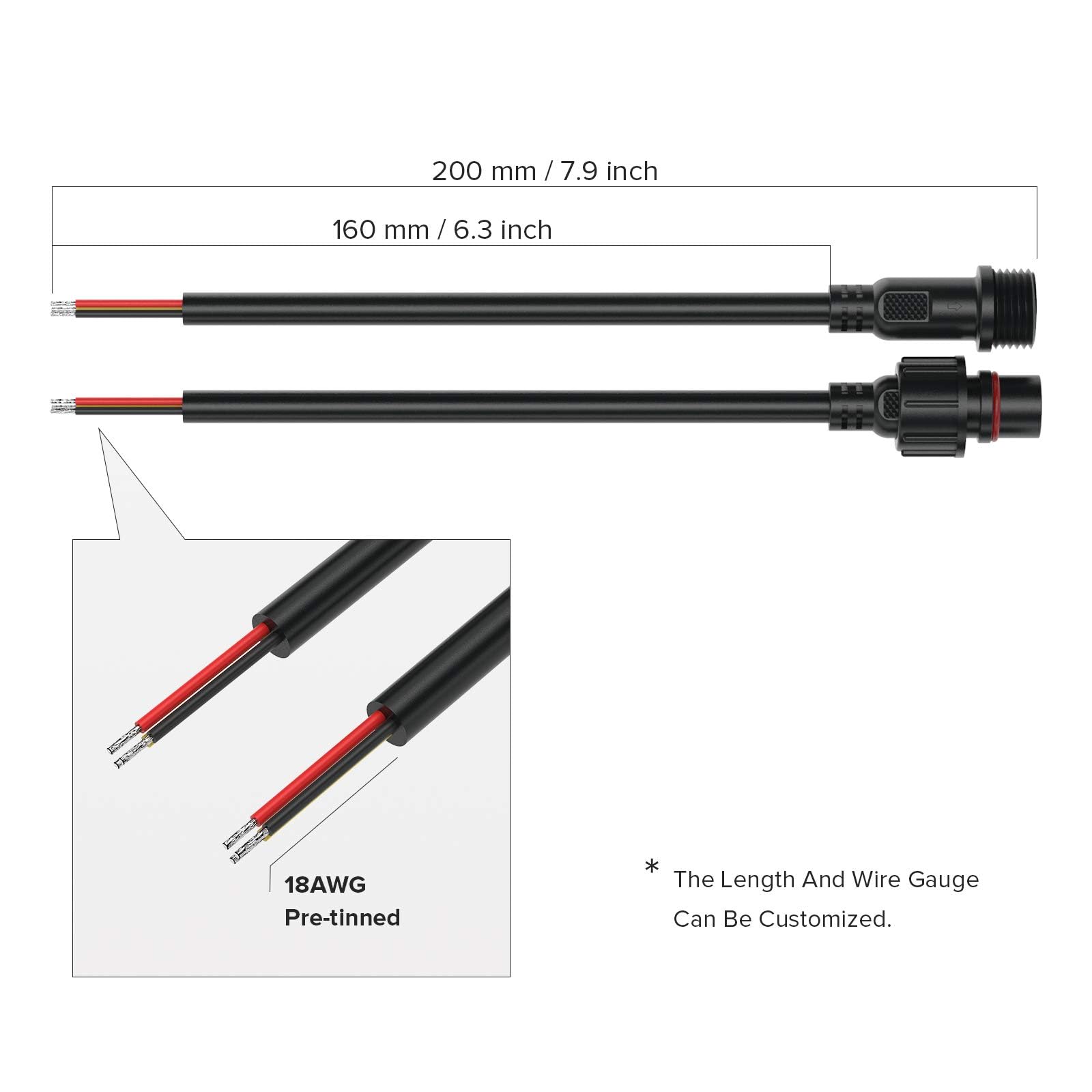

The BTF-LIGHTING 3 Pin Electrical Connector set features five pairs of IP65-rated waterproof male and female connectors with 18AWG heavy-duty copper wiring. Each 20cm extension cable is designed for reliable, weather-resistant connections in automotive, marine, and indoor/outdoor LED lighting applications. Compatible exclusively with BTF-LIGHTING components, these connectors ensure secure, durable, and easy-to-install power and signal transmission for your next lighting upgrade.
| Brand | BTF-LIGHTING |
| Connector Type | Pin |
| Cable Type | Coaxial |

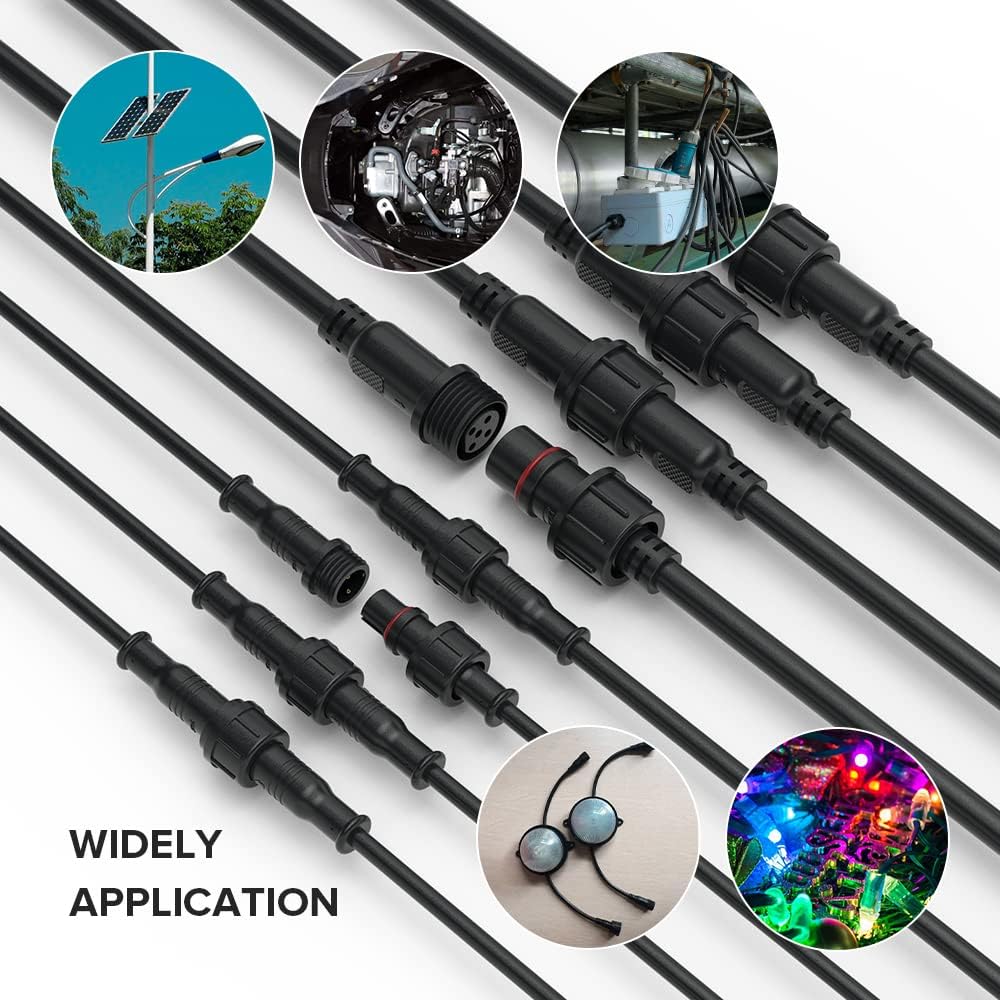

| Compatible Devices | LED Strip Lights, Vehicle Lighting Systems, Boat Lighting Systems, Indoor Lighting Systems, Outdoor Lighting Systems |
| Special Feature | Waterproof |
| Color | 1 to 1 |
| Connector Gender | Male-to-Female |
| Number of Pins | 3 |
| Unit Count | 5 Count |
| Item Weight | 0.1 Kilograms |
| Gauge | 18 |
| Specification Met | Ip65 |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Wattage | 1 watts |
| Maximum Voltage | 12 Volts (DC) |
| Outer Material | Polyvinyl Chloride (PVC) |
| Manufacturer | BTF-Lighting Teachnology Co., Limited |
| UPC | 681599200929 602938069588 |
| Part Number | WP3PINBB |
| Item Weight | 3.52 ounces |
| Product Dimensions | 4.72 x 3.94 x 0.59 inches |
| Item model number | WP3PINBB |
| Is Discontinued By Manufacturer | No |
| Assembled Height | 1.5 centimeters |
| Assembled Length | 12 centimeters |
| Assembled Width | 10 centimeters |
| Style | 3 pin |
| Material | metal, ceramic |
| Number of Lights | 200 |
| Special Features | Waterproof |
| Power Source | Wired_electric |
| Batteries Included? | No |
| Batteries Required? | No |
| Type of Bulb | LED |
A**W
Works like it should.
Works like it should.
B**F
Makes quick connections easy.
I used these to connect my DSC wires from my VHF radio to my Multifunctional fish finder/Chart plotter. Since I wanted to be able to remove my electronics easily if needed, I did not want to have a permanent connections between the two devices. These four pin connectors were perfect. They are easy to install (need to be wired in) and are small enough to tuck up in small places. The are sealed and have a nice tight fit when connect to each other. The great thing is, if I need to take out my radio or chart plotter, all I have to so is un-screw the connector cap and easily pull them apart. Great product and you get plenty for other projects or if you mess up one.
R**C
Well made low-voltage electrical connectors
The connectors appear to be of good quality. I haven't actually gotten to test them for waterproof connections yet.
T**W
Overall High Quality Connectors.
Waterproof, durable, and easy to use. They come with enough wire length to run through a cable gland and still have space on both ends. The only downside is that every time I have ordered, they come slightly out of shape. I don’t know if it’s due to the Texas heat or just being smooshed in shipping, but since it’s a malleable plastic it’s pretty easy to get fixed without any tools.
G**L
Great Connectors, But BEWARE. They are NOT mini xConnect compatible.
I've bought lots of BTF products in the past and have never been disappointed in their quality. These are no different in that respect.However, I bought these connectors because I thought they would be compatible with my mini - xConnect trim lights. THEY ARE NOT Mini-xConnect Compatible. The thread diameter is different; the pin locations are different, and the wire gage is 22 AWG instead of 18 AWG. So, while they are great connectors, these will not work if you need the smaller "xConnect".Some of the other reviews indicate that the standard size BTF connector may fit the standard size xConnect connectors, but again these "BTF 3 Pin Small Size" connectors are not mini-xConnect compatible
J**E
Does what it intended to
Easy to solder and provides a water proof connection. I’ve been using them for about a year on a solar panel to pond fountain without issue. I would purchase again.
A**R
Broken piece
One of the 5 connectors union was broken, besides that solid product
J**S
Works well
Works well, lots of applications. Used these for motor phase wire connection on an ebike.
