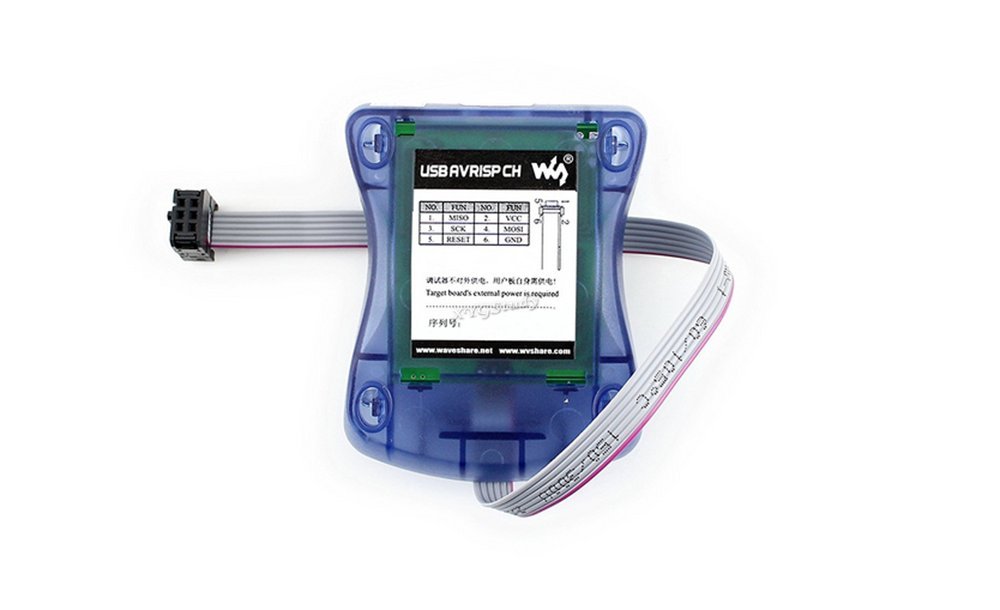

Based on ATMEL Official STK500 USB AVRISP CH AVR ISP high Speed Programmer Compatible with at AVRISP from ATMEL Supports AVR Studio 4/5/6/7 ISP_6PIN Interface @XYGStudy
Details
- BrandXYG-AVR
- Model NameUSB AVRISP CH
- CPU ModelIntel Atom 230
- Connectivity TechnologyUSB
- Operating SystemWin10
Description
⚡ Code faster, debug smarter — the pro’s choice for AVR programming!
- ROCK SOLID STABILITY - Built on ATMEL’s official STK500 firmware ensuring dependable and consistent performance every session.
- BLAZING FAST PROGRAMMING - Experience rapid code uploads with up to 3.6864MHz frequency output, slashing your development time.
- BROAD AVR STUDIO SUPPORT - Fully compatible with AVR Studio versions 4 through 7, empowering your workflow with familiar tools.
- COMPACT LIGHTWEIGHT DESIGN - Ultra-portable at just 0.01 ounces, perfect for on-the-go professionals and makers.
- PLUG PLAY UNIVERSAL COMPATIBILITY - Seamlessly works with Windows 10 and most popular OS thanks to the reliable CH340G USB-UART bridge.
Based on ATMEL’s official STK500 firmware and equipped with a CH340G USB to UART converter, this high-speed AVR ISP programmer supports frequencies up to 3.6864MHz and is compatible with AVR Studio 4 to 7. Lightweight and stable, it ensures seamless programming on Windows 10 and other popular operating systems, making it an essential tool for professional embedded developers.
Specifications
| Processor | intel_atom_230 |
| RAM | LPDDR3 |
| Wireless Type | 802.11b |
| Brand | XYG-AVR |
| Series | USB AVRISP CH |
| Item model number | 8541608482 |
| Operating System | Win10 |
| Item Weight | 0.01 ounces |
| Package Dimensions | 5.28 x 3.9 x 1.57 inches |
| Processor Brand | Atmel |
| Number of Processors | 1 |
| Manufacturer | XYG-AVR |
| ASIN | B07B6NHG63 |
| Is Discontinued By Manufacturer | No |
| Date First Available | April 5, 2013 |
